Slimline Enclosures
MEET PEW3, PEW4, PEF6 & PEF9

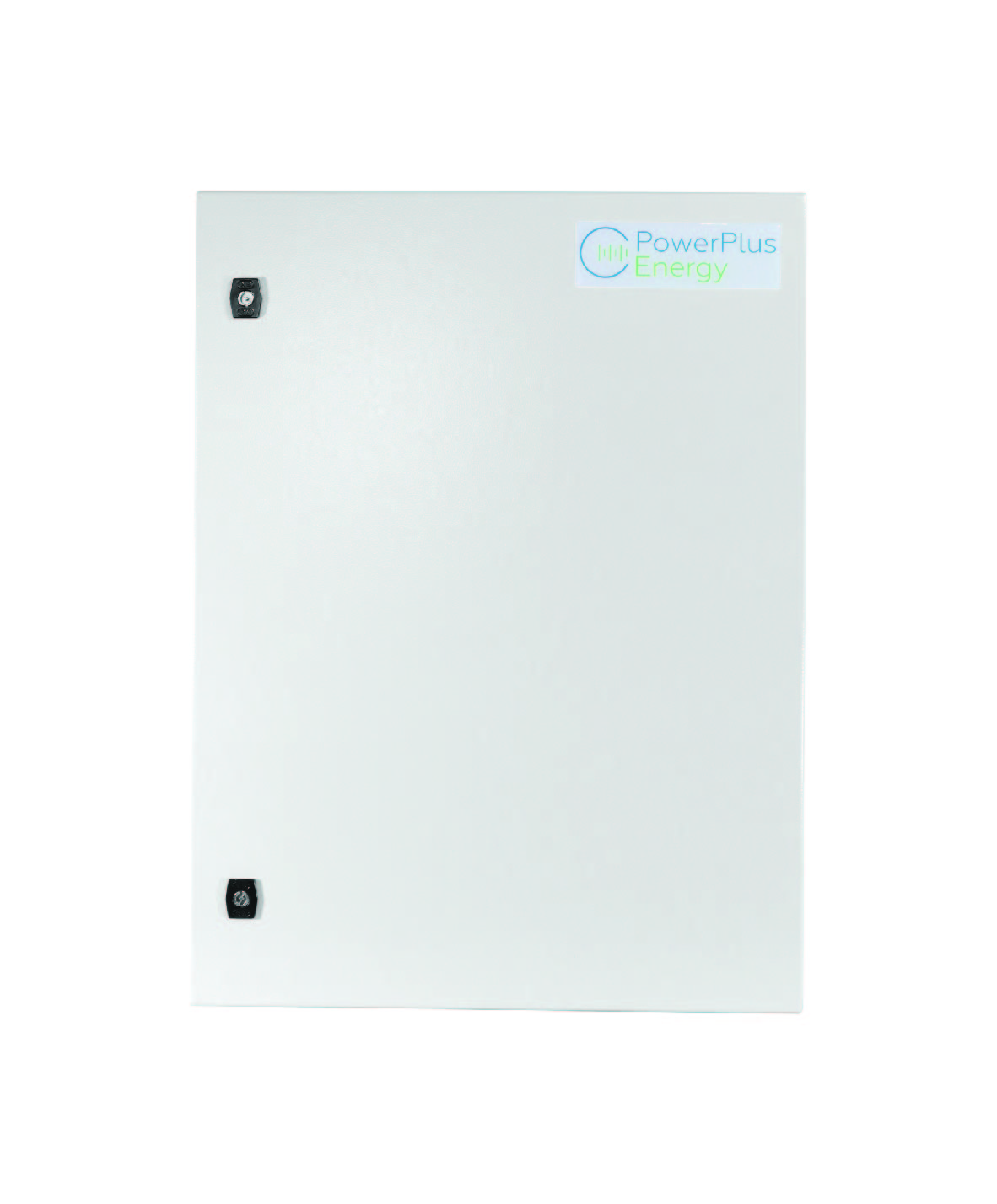

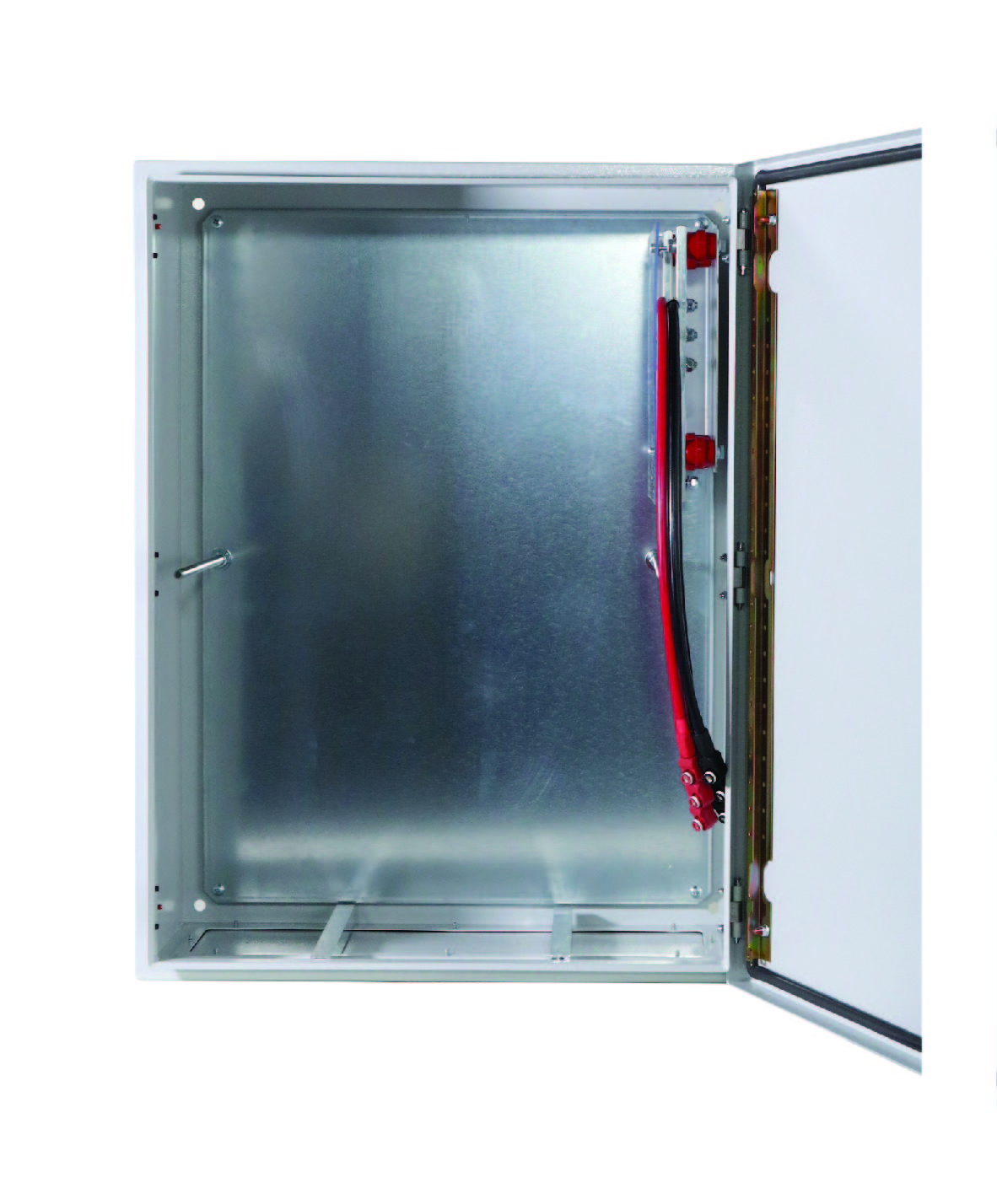

PEW3 & PEW4
Store up to 16kWh of energy
Our most compact battery cabinet in the range
This cabinet is an optimal choice for smaller systems.
The size and construction of the PEW cabinet makes it well suited for secure installation in tight spaces and residential properties. Additional cabinets can be added for expansion as required, maintaining the low profile.

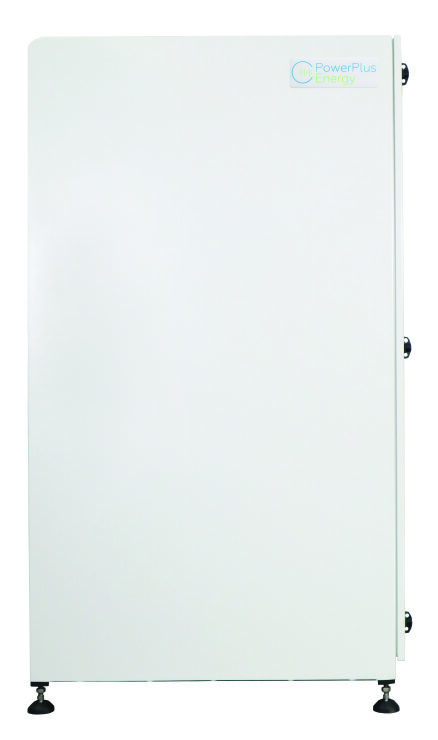

PEF9W - 250
Store up to 36kWh of energy
Future proof your system with our largest capacity cabinet
The largest capacity battery storage cabinet in the Slimline range offering homeowners the flexibility for future system expansion.
The option of side mounted installation provides up to 36kWh capacity in this slimline enclosure. No need to compromise energy storage capacity.

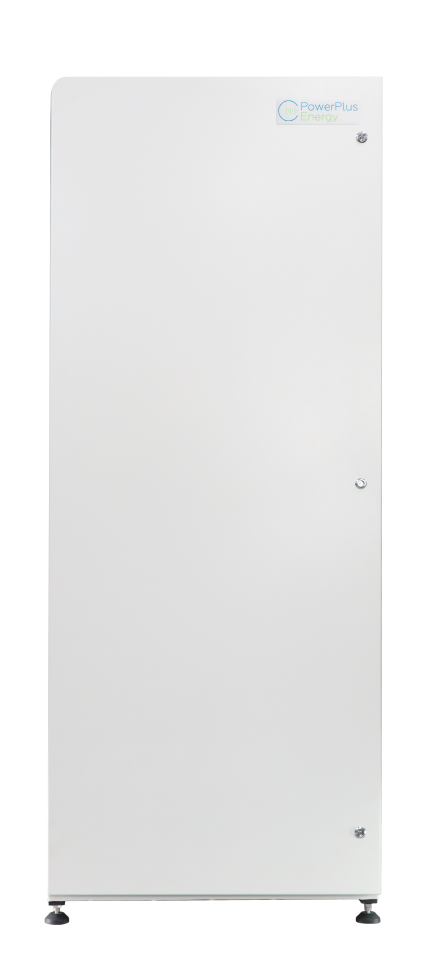

PEF6W - B250
Store up to 24kWh of energy
All in one enclosure for inverter and batteries
The PEF6 provides a compact solution for your complete solar powered battery system with minimal impact on walkways along the side of your home.
The flexible design is suitable for a range of popular inverters to be installed in the same weatherproof enclosures with PowerPlus Energy batteries.

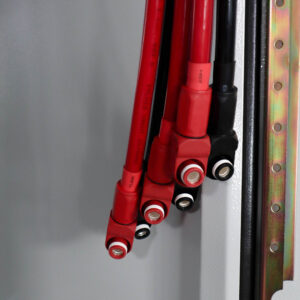

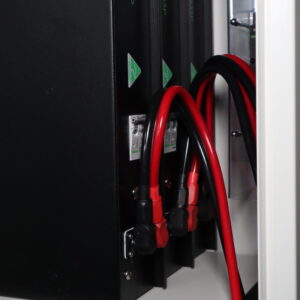

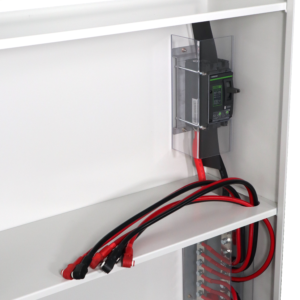

Pre-wired for a simple install
Make your installation simpler when you compliment your batteries with a pre-wired cabinet built with high quality Australian components.
Infinitely Scalable
Our pre-wired cabinets can be infinitely scaled by paralleling them, giving you the ability to have small and large systems to suit different needs.
Indoor & outdoor applications

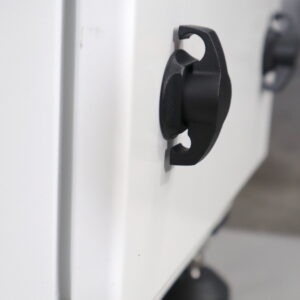

All Slimline enclosures are suited for outdoor installations. Strong steel cabinets with a high quality powder coating finish for durability and security.
- Australian Made
- Pre-wired
- Suitable for both LiFe Premium and Eco Series Batteries
- Durable, Robust, Powder Coated Finish
- Future Proof Friendly
- Multiple Cabinets can be Linked in Parallel
- Indoor and Outdoor Friendly
Pair your battery with a premium cabinet, made with Australian components.
Can't decide which cabinet is best suited for your project? No worries, let our sales team help point you in the right direction.
PEW3 & PEW4
Store up to 16kWh of energy
3 or 4 battery slots
Wall Mounted
Busbar with M8 Stud
33kg/37kg
Natural Convection Cooling
PEF9W - 250
Store up to 36kWh of energy
9 battery slots
Floor Mounted
Busbar with M8 Stud
95kg
Natural Convection Cooling
PEF6W - B250
Store up to 24kWh of energy
6 battery slots
floor Mounted
Busbar with M8 Stud
72kg
Temperature Controlled (adjustable) Fan Forced
*We are committed to the continual development and improvement of our products and as a result these specifications are subject to change.
